OMAB Series Air Bag Lift Tables

Capacity: 2,000 – 6,000 lbs

SKU: prod-4 Category:

Description

Overview

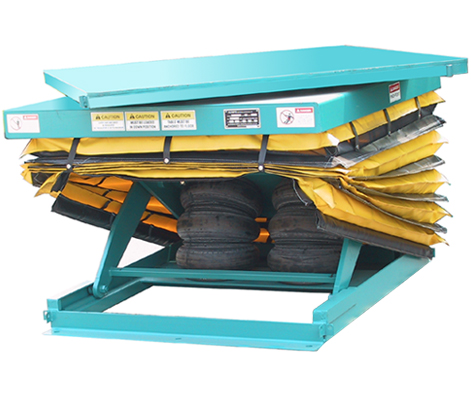

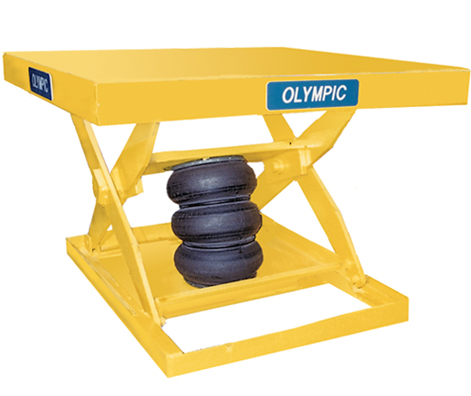

Olympic’s OMAB Series Air Lift Tables are hydraulic lifts that are powered via your local air supply. These units require less maintenance because of a heavy duty air spring component with no moving parts. OMAB lift tables are designed to maximize productivity by positioning work at correct ergonomic levels, which eliminates repetitive movements such as lifting and bending, and minimizes operator fatigue and back injuries.

Special features such as tilt and rotate are also available. Rotating units feature a captivated pivot pin with bearing with a minimum of four roller bearings for easier maneuverability. Lift and tilt series feature a 35 degree tilt bringing loads to optimal ergonomic heights. A motion stabilizer ensures smooth, safe, and steady tilting. Quick connect for air supply and safety chains are standard.

Options Available

  • One Air Bag Lift Table
  • Two Air Bag Lift and Retaining Plate
  • Manual Turn Table and Accordian Bellows

Submit Inquiry (.pdf)

Please complete the below form if you wish to generate and submit an Olympic Product Inquiry Request

Olympic Inquiry Form

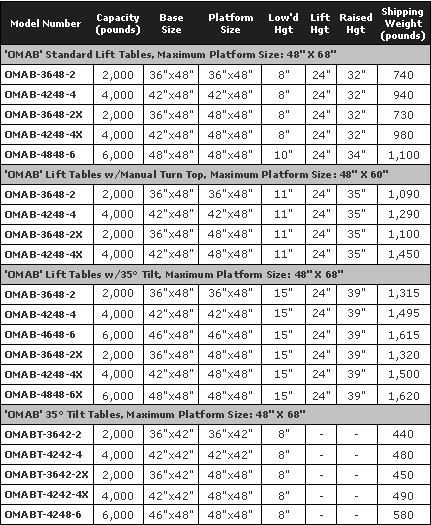

OMAB Series Specifications

* Products shown with accessories
